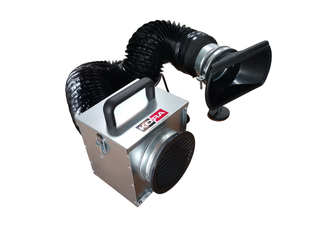

Soldering smoke compact filter LKF 100

Compact device with extraction hood and magnetic base suitable for mobile and stationary use for soft soldering, hot gluing, laser cutting or plastic welding.

The device has four filtration layers made of silver, PET, HEPA and activated carbon for the effective removal of particles, smoke and odors.

Changing the filter is child's play and can be done without tools.This innovative extraction device not only guarantees a safe working environment, but also helps to increase productivity through better air quality.

• Voltage: 230 V-50 Hz
• Max. power: 20 WMax.
• volume flow 200 m³/h (free blowing)
• Extraction capacity with hose and filter: 104 m³/h
• HEPA particle filter: 220x180 mm
• Separation efficiency 99.7%
• Suction hose DN 125: 2.5 m
• Extraction hood: 241 x 114 x 89 mm
• Dimensions (WxLxH) 180x160x180 mm
• Weight: 3.50 kg
• Noise level 35 db(A)

Mobiler Filter wirh extraction arm MWF 1200

Mobile filter system can be used for many tasks in the field of filtration of fumes, dusts and gases.

The MWF 1200 is perfect for the separation of fumes, released by welding, cutting and joining during the processing of non-alloy and high-alloy chromium/nickel steels.

• Plug n Play
• Voltage: 230V / 50 Hz
• power consumption: 82-162 Watt
• With multi-stage filtering incl. activated carbon filter
• with extraction arm - 3m
• High performance
• Easy change of filters through maintenance flap
• Low noise level with only 45-58 dB(A)
• Dimension (WxLxH): 700 x 700 x 900 mm
• Weight: 95 Kg

Mobiler Filter wirh dual arms

Mobile filter system with double arm can be used for many tasks in the field of filtering fumes, dust and gases.

The MWF 2400 Twin Power is ideal for separating fumes that are released by welding separation and joining processes when processing unalloyed steels, including high-alloy chrome/nickel steels.

• Plug n Play
• Voltage: 230V / 50 Hz
• Two radial fans, individually switchable
• Stepless control
• With multi-stage filter processes
• With two extraction arms DN 150 - 3m
• High extraction performance
• Easy filter change via maintenance door
• Chamber for optional spark trap
• Dimensions (W x L x H): 700 x 700 x 900 mm
• Weight: 115 kg

Hose arm EAG

Flexlibler point extraction arm with external support rods for extracting welding fumes, soldering fumes, light dusts and vapors.

• Version: hose
• Arm length: 2-9 m
• Rotation: 360°
• Wall console with rotating flange
• Optimized extraction hood with throttle valve

Pipe arm EAG

Flexlibler point extraction arm with external support rods for extracting welding fumes, soldering fumes, light dusts and vapors.

• Version: pipe
• Arm length: 2-9 m
• Rotation: 360°
• Wall console with rotating flange
• Optimized extraction hood with throttle valve

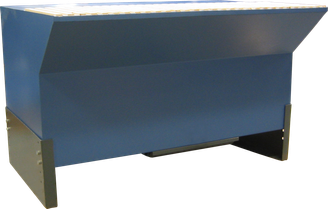

Extraction Table WGT

The WGT extraction table made of sturdy steel construction with under-table extraction is particularly suitable as a gluing, grinding, polishing, welding and cutting table.

The dust and fumes are extracted downwards and can be disposed of safely and easily via the dust collection tray.

• Height adjustable: 680 -980 mm
• Ribs: steel or wood
• Can hold up to 150 kg
• optional side paneloptional rear wall
• optional lighting
• Length: 1000, 2000 and 2500 mm
• Width: 1000 and 1200 mm

Cyclone Filter CFG

Cartridge filter system with compressed air cleaning for removing welding fumes, soldering fumes, light dusts and vapors at several workplaces at the same time. The filter system is suitable for working with unalloyed metals and precious metals as well as galvanized material and aluminum.

• Filter area: 13-210 m²
• Dust class: M, HEPA
• Volume flow: up to 40,000 m³/h
• Pressure increase: 5000 Pa
• Dust container 72-150 L
• Separation degree: up to 99.999995
